Name: 40ft High Cube Mobile Office Container
SKU: 3110
Availability: InStock

40ft High Cube Mobile Office Container

Technical Specifications Summary

Exterior Dimensions: 40′ L x 8′ W x 8’6″ H (12.19m x 2.44m x 2.59m).
Interior Clear Dimensions: Approximately 39’6″ L x 7’8″ W x 8’2″ H (varies with insulation thickness).
Construction: Corten steel outer shell with internal insulated steel-stud frame.
Flooring: Commercial vinyl over marine plywood subfloor.
Walls/Ceiling: Insulated (R-13+), finished with white PVC/melamine panels.
Electrical: 110V system with breaker panel, LED lighting, and multiple outlets.
HVAC: Two (2) wall-mounted A/C + Heat Pump units.
Windows: Three (3) sliding, screened, and secured windows.
Doors: Two (2) steel personnel doors with locks.
Condition: New (One-Trip), modified.
Paint: RAL 1015 Light Beige DTM paint.

Intended Applications & Readiness

Primary Use Cases: Construction site offices, industrial yard command centers, remote project management hubs, emergency response and security stations, portable classrooms, retail kiosks, and modular commercial spaces.
Delivery State: Delivered fully finished, wired, and equipped. Requires only connection to a standard external power source (and potentially a water source if a wet unit) for immediate occupancy.

Delivery options

We offer two types of trucks for container delivery:

Tilt-Bed Truck (recommended if no unloading equipment is available):
The truck will back into position, tilt the bed, and slide the container off onto the ground.
Requirements: 125 ft of straight clearance, 12 ft width, and 16 ft vertical clearance.

Flatbed Truck (if you have a forklift or crane on-site):
A forklift (minimum 15,000 lb capacity) or crane is required to unload the container.
Requirements: 125 ft of straight clearance, 12 ft width, and 14 ft vertical clearance.

Site Preparation
Before scheduling delivery, please ensure:

Clear, unobstructed access for the delivery truck
No overhead obstacles such as trees, utility lines, or structures
Dry, solid ground conditions (notify us if the ground is soft, wet, or muddy)

Containers are placed directly onto flat, level surfaces. No foundation is required for ground storage.

Delivery Timing
Delivery is typically completed within 1–3 business days after your container is ready for dispatch.

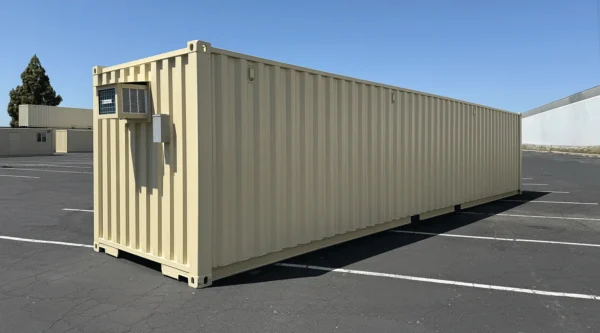

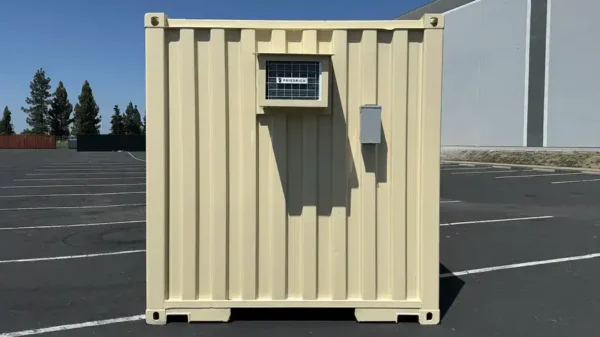

A fully turnkey, self-contained mobile workspace constructed from a new, one-trip 40ft standard dry shipping container. The conversion creates a durable, insulated, and instantly operational office environment, designed for rapid deployment and long-term service in demanding conditions.

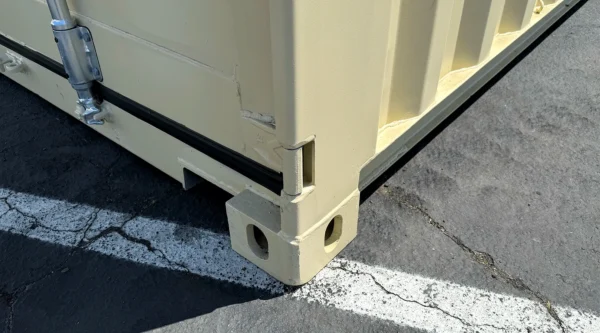

Structural Foundation & Shell

Base Unit: New 40ft x 8ft x 8ft 6in (L x W x H) one-trip shipping container.
Primary Structure: High-tensile Corten (Corrosion-Tenacious) steel corrugated walls, roof, and underframe. This steel is known for forming a stable, protective rust patina, enhancing longevity.
Modification: The container is modified with precisely cut openings for doors, windows, and HVAC units, reinforced with structural steel framing to maintain integral container strength and rigidity.

Construction & Build-Out

Methodology: A “Container-in-Container” or lined build-out approach. An independent, thermally broken steel stud frame is constructed inside the primary container shell.
Floor System: Multi-layer construction:
1. Original container floor as a secondary moisture barrier.
2. Marine-grade pressure-treated plywood subfloor.
3. Commercial-grade, heavy-duty vinyl sheet flooring with a wear layer, providing a seamless, easy-to-clean, and durable finish.

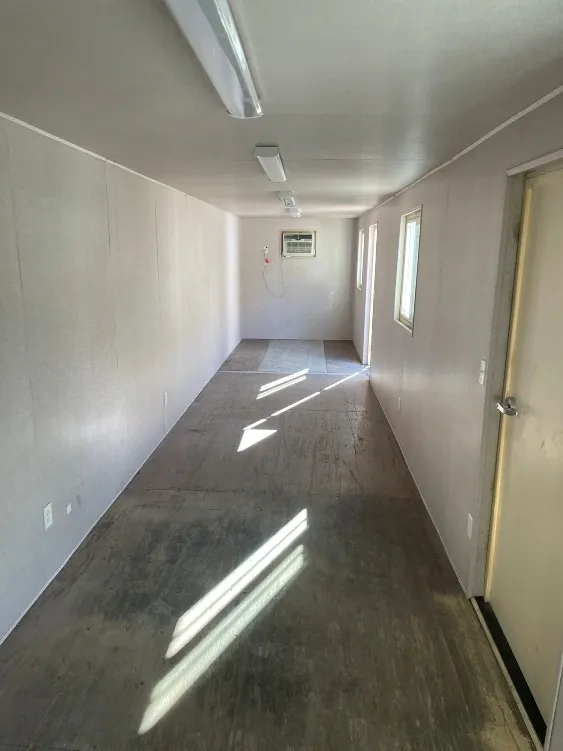

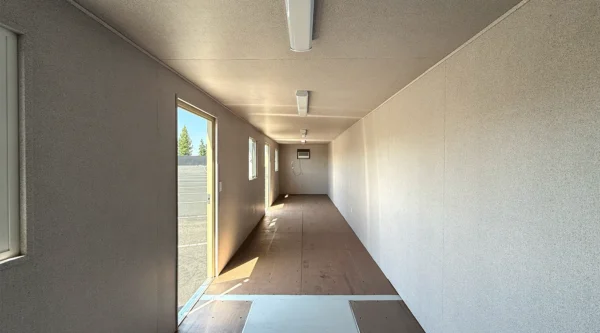

Wall & Ceiling System:
1. Insulation: High-density fiberglass or mineral wool batt insulation (typically R-13 to R-19) installed within the stud cavity to mitigate thermal bridging and condensation.
2. Vapor Barrier: A polyethylene membrane on the warm side of the insulation.
3. Interior Finish: White, washable PVC or melamine wall and ceiling paneling, creating a bright, clean, and maintenance-free environment.

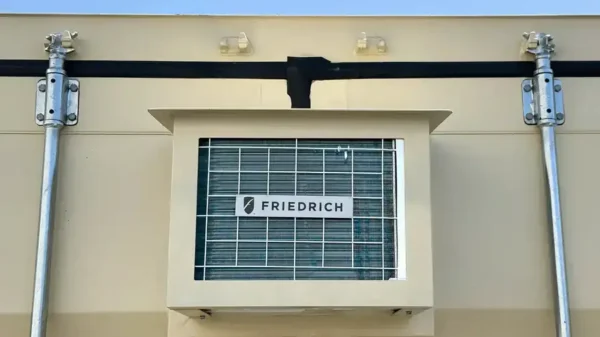

Climate Control (HVAC)

System: Two independent, wall-mounted split-system or ductless mini-split units (A/C & Heat Pump combos).
Configuration: Typically one unit at each end of the 40ft space for optimal zoned temperature distribution and redundancy.
Capacity: Units are sized appropriately for the insulated volume (~650-700 sq ft), ensuring efficient cooling and heating even in extreme ambient temperatures.
Installation: Mounted through dedicated sleeves in the container wall with external condensers secured on the container exterior or roof.

Electrical System

Power Supply: Pre-configured for standard 110V/60Hz North American service.
Distribution: A main circuit breaker panel distributes power to dedicated circuits.
Wiring: NEC-compliant Romex (NM-B) or equivalent cabling run within the wall cavities.
Outlets: Multiple grounded GFCI and standard duplex receptacles strategically placed along walls.
Lighting: Energy-efficient LED ceiling-mounted panel lights or troffers, providing uniform, flicker-free illumination.

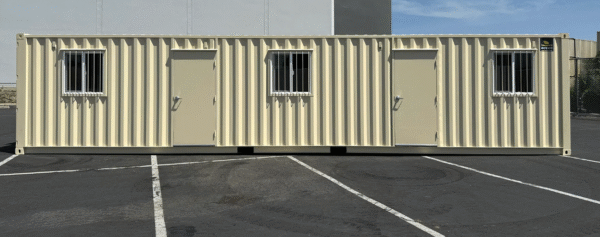

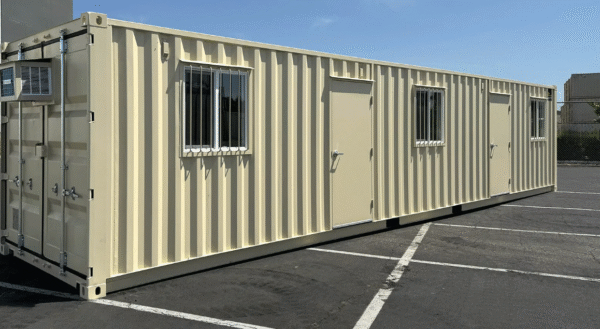

Fenestration & Access

Windows (3): Heavy-duty, vinyl-framed horizontal sliding windows. Features include:
- Tempered safety glass.
- Integrated insect screens.
- Exterior security bars or grilles.
- Provisions for privacy blinds or curtains.
Entry Doors (2): Standard steel personnel doors (typically 36″ x 80″) with commercial-grade hardware:
- Deadbolt locksets for security.
- Lever handles for accessibility.
- Integrated view windows or peepholes.
- Weather stripping for air/water seal.

Exterior Finish & Protection

Paint System: Industrial-grade Direct-To-Metal (DTM) paint in RAL 1015 Light Beige.
- Process: Surface preparation (abrasive blasting or power tool cleaning), application of DTM primer and topcoat.
- Advantage: DTM paint adheres directly to steel without a separate primer, providing excellent corrosion resistance, durability, and a uniform, aesthetically pleasing finish
